pb_type_graph.c File Reference

#include <stdio.h>
#include <assert.h>
#include <string.h>
#include "util.h"
#include "token.h"
#include "arch_types.h"
#include "vpr_types.h"
#include "globals.h"
#include "vpr_utils.h"
#include "pb_type_graph.h"
#include "pb_type_graph_annotations.h"
#include "cluster_feasibility_filter.h"
#include "power.h"

Include dependency graph for pb_type_graph.c:

Go to the source code of this file.

Functions
static int	check_pb_graph (void)
static void	alloc_and_load_pb_graph (INOUTP t_pb_graph_node *pb_graph_node, INP t_pb_graph_node *parent_pb_graph_node, INP t_pb_type *pb_type, INP int index, boolean load_power_structures)
static void	alloc_and_load_mode_interconnect (INOUTP t_pb_graph_node *pb_graph_parent_node, INOUTP t_pb_graph_node **pb_graph_children_nodes, INP const t_mode *mode, boolean load_power_structures)

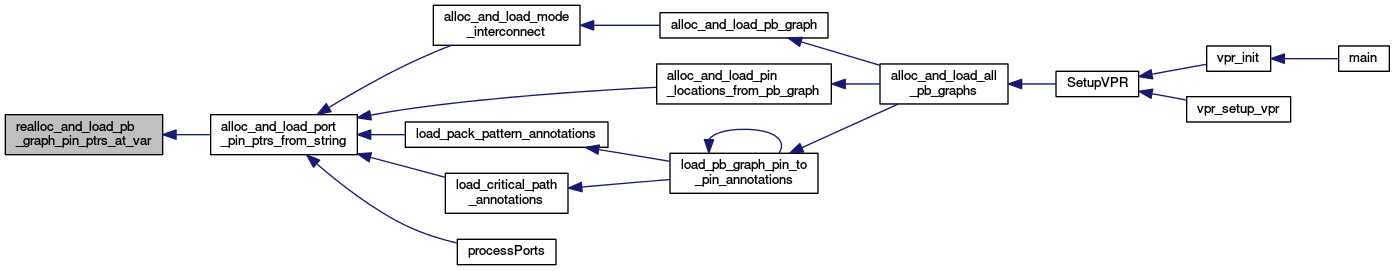

static boolean	realloc_and_load_pb_graph_pin_ptrs_at_var (INP int line_num, INP const t_pb_graph_node *pb_graph_parent_node, INP t_pb_graph_node **pb_graph_children_nodes, INP boolean interconnect_error_check, INP boolean is_input_to_interc, INP const t_token *tokens, INOUTP int *token_index, INOUTP int *num_pins, OUTP t_pb_graph_pin ***pb_graph_pins)

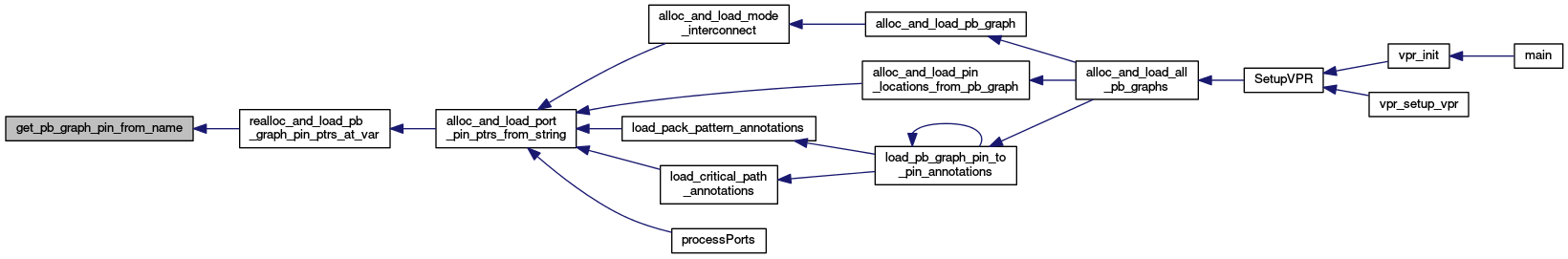

static t_pb_graph_pin *	get_pb_graph_pin_from_name (INP const char *port_name, INP const t_pb_graph_node *pb, INP int pin)
static void	alloc_and_load_complete_interc_edges (INP t_interconnect *interconnect, INOUTP t_pb_graph_pin ***input_pb_graph_node_pin_ptrs, INP int num_input_sets, INP int *num_input_ptrs, INOUTP t_pb_graph_pin ***output_pb_graph_node_pin_ptrs, INP int num_output_sets, INP int *num_output_ptrs)
static void	alloc_and_load_direct_interc_edges (INP t_interconnect *interconnect, INOUTP t_pb_graph_pin ***input_pb_graph_node_pin_ptrs, INP int num_input_sets, INP int *num_input_ptrs, INOUTP t_pb_graph_pin ***output_pb_graph_node_pin_ptrs, INP int num_output_sets, INP int *num_output_ptrs)
static void	alloc_and_load_mux_interc_edges (INP t_interconnect *interconnect, INOUTP t_pb_graph_pin ***input_pb_graph_node_pin_ptrs, INP int num_input_sets, INP int *num_input_ptrs, INOUTP t_pb_graph_pin ***output_pb_graph_node_pin_ptrs, INP int num_output_sets, INP int *num_output_ptrs)
static void	alloc_and_load_pin_locations_from_pb_graph (t_type_descriptor *type)
static void	echo_pb_rec (INP const t_pb_graph_node *pb, INP int level, INP FILE *fp)
static void	echo_pb_pins (INP t_pb_graph_pin **pb_graph_pins, INP int num_ports, INP int level, INP FILE *fp)
static void	free_pb_graph (INOUTP t_pb_graph_node *pb_graph_node)
static void	alloc_and_load_interconnect_pins (t_interconnect_pins *interc_pins, t_interconnect *interconnect, t_pb_graph_pin ***input_pins, int num_input_sets, int *num_input_pins, t_pb_graph_pin ***output_pins, int num_output_sets, int *num_output_pins)
void	alloc_and_load_all_pb_graphs (boolean load_power_structures)
void	free_all_pb_graph_nodes (void)
void	echo_pb_graph (char *filename)

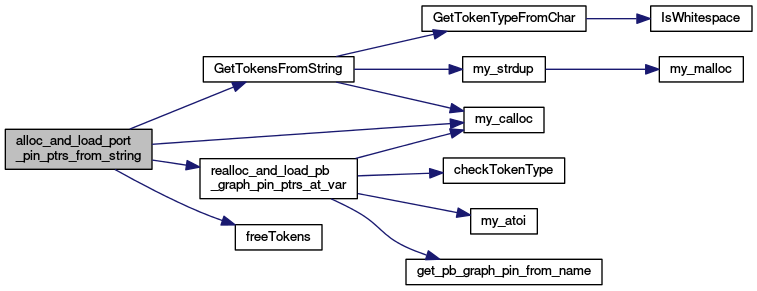

t_pb_graph_pin ***	alloc_and_load_port_pin_ptrs_from_string (INP int line_num, INP const t_pb_graph_node *pb_graph_parent_node, INP t_pb_graph_node **pb_graph_children_nodes, INP const char *port_string, OUTP int **num_ptrs, OUTP int *num_sets, INP boolean is_input_to_interc, INP boolean interconnect_error_check)

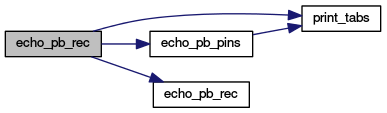

static void	echo_pb_rec (const INP t_pb_graph_node *pb_graph_node, INP int level, INP FILE *fp)

Variables
static int	pin_count_in_cluster
static struct s_linked_vptr *	edges_head
static struct s_linked_vptr *	num_edges_head

Function Documentation

void alloc_and_load_all_pb_graphs

(

boolean

load_power_structures

)

Allocate memory into types and load the pb graph with interconnect edges

Definition at line 89 of file pb_type_graph.c.

                                                                 {
    int i, errors;
    edges_head = NULL;
    num_edges_head = NULL;
    for (i = 0; i < num_types; i++) {
        if (type_descriptors[i].pb_type) {
            pin_count_in_cluster = 0;
            type_descriptors[i].pb_graph_head = (t_pb_graph_node*) my_calloc(1,
                    sizeof(t_pb_graph_node));
            alloc_and_load_pb_graph(type_descriptors[i].pb_graph_head, NULL,
                    type_descriptors[i].pb_type, 0, load_power_structures);
            type_descriptors[i].pb_graph_head->total_pb_pins =
                    pin_count_in_cluster;
            alloc_and_load_pin_locations_from_pb_graph(&type_descriptors[i]);
            load_pin_classes_in_pb_graph_head(
                    type_descriptors[i].pb_graph_head);
        } else {
            type_descriptors[i].pb_graph_head = NULL;
            assert(&type_descriptors[i] == EMPTY_TYPE);
        }
    }

    errors = check_pb_graph();
    if (errors > 0) {
        vpr_printf(TIO_MESSAGE_ERROR, "in pb graph");
        exit(1);
    }
    for (i = 0; i < num_types; i++) {
        if (type_descriptors[i].pb_type) {
            load_pb_graph_pin_to_pin_annotations(
                    type_descriptors[i].pb_graph_head);
        }
    }
}

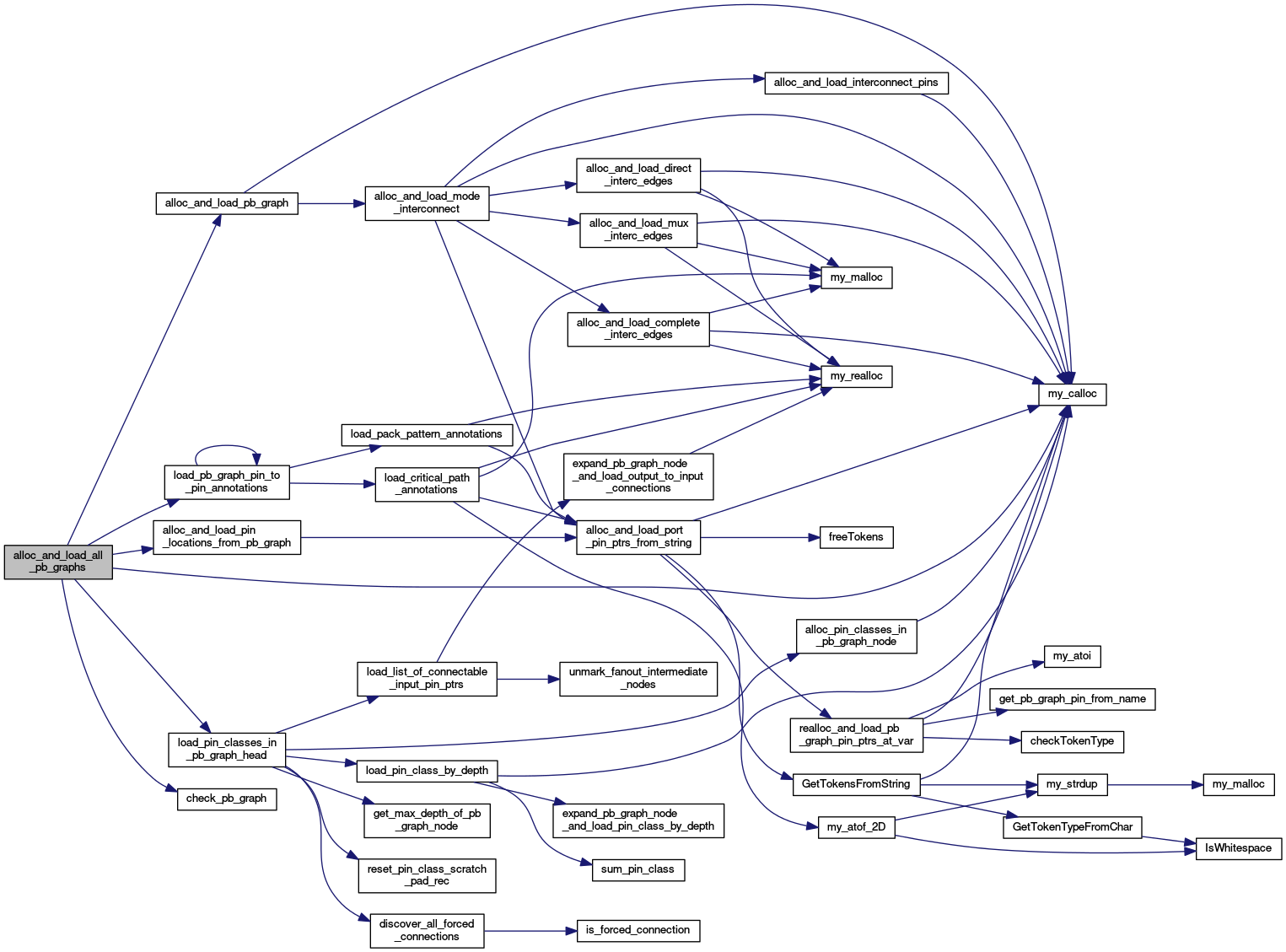

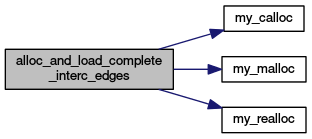

Here is the call graph for this function:

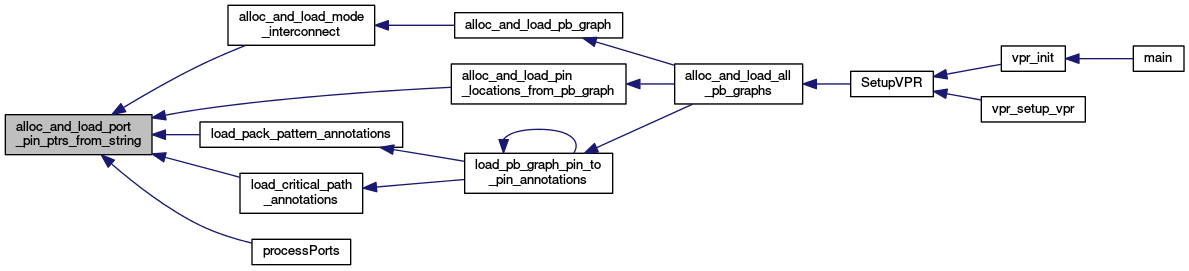

Here is the caller graph for this function:

static void alloc_and_load_complete_interc_edges ( INP t_interconnect *  interconnect, INOUTP t_pb_graph_pin ***  input_pb_graph_node_pin_ptrs, INP int  num_input_sets, INP int *  num_input_ptrs, INOUTP t_pb_graph_pin ***  output_pb_graph_node_pin_ptrs, INP int  num_output_sets, INP int *  num_output_ptrs  )

static

Creates edges to connect all input pins to output pins

Definition at line 841 of file pb_type_graph.c.

                                                           {
    int i_inset, i_outset, i_inpin, i_outpin;
    int in_count, out_count;
    t_pb_graph_edge *edges;
    int i_edge;
    struct s_linked_vptr *cur;

    assert(interconnect->infer_annotations == FALSE);

    /* Allocate memory for edges, and reallocate more memory for pins connecting to those edges */
    in_count = out_count = 0;

    for (i_inset = 0; i_inset < num_input_sets; i_inset++) {
        in_count += num_input_ptrs[i_inset];
    }
    for (i_outset = 0; i_outset < num_output_sets; i_outset++) {
        out_count += num_output_ptrs[i_outset];
    }

    edges = (t_pb_graph_edge*) my_calloc(in_count * out_count,
            sizeof(t_pb_graph_edge));
    cur = (struct s_linked_vptr*) my_malloc(sizeof(struct s_linked_vptr));
    cur->next = edges_head;
    edges_head = cur;
    cur->data_vptr = (void *) edges;
    cur = (struct s_linked_vptr*) my_malloc(sizeof(struct s_linked_vptr));
    cur->next = num_edges_head;
    num_edges_head = cur;
    cur->data_vptr = (void *) ((long) in_count * out_count);

    for (i_inset = 0; i_inset < num_input_sets; i_inset++) {
        for (i_inpin = 0; i_inpin < num_input_ptrs[i_inset]; i_inpin++) {
            input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->output_edges =
                    (t_pb_graph_edge **) my_realloc(
                            input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->output_edges,
                            (input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->num_output_edges
                                    + out_count) * sizeof(t_pb_graph_edge *));
        }
    }

    for (i_outset = 0; i_outset < num_output_sets; i_outset++) {
        for (i_outpin = 0; i_outpin < num_output_ptrs[i_outset]; i_outpin++) {
            output_pb_graph_node_pin_ptrs[i_outset][i_outpin]->input_edges =
                    (t_pb_graph_edge **) my_realloc(
                            output_pb_graph_node_pin_ptrs[i_outset][i_outpin]->input_edges,
                            (output_pb_graph_node_pin_ptrs[i_outset][i_outpin]->num_input_edges
                                    + in_count) * sizeof(t_pb_graph_edge *));
        }
    }

    i_edge = 0;

    /* Load connections between pins and record these updates in the edges */
    for (i_inset = 0; i_inset < num_input_sets; i_inset++) {
        for (i_inpin = 0; i_inpin < num_input_ptrs[i_inset]; i_inpin++) {
            for (i_outset = 0; i_outset < num_output_sets; i_outset++) {
                for (i_outpin = 0; i_outpin < num_output_ptrs[i_outset];
                        i_outpin++) {

                    input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->output_edges[input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->num_output_edges] =
                            &edges[i_edge];
                    input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->num_output_edges++;
                    output_pb_graph_node_pin_ptrs[i_outset][i_outpin]->input_edges[output_pb_graph_node_pin_ptrs[i_outset][i_outpin]->num_input_edges] =
                            &edges[i_edge];
                    output_pb_graph_node_pin_ptrs[i_outset][i_outpin]->num_input_edges++;

                    edges[i_edge].num_input_pins = 1;
                    edges[i_edge].input_pins = (t_pb_graph_pin **) my_malloc(
                            sizeof(t_pb_graph_pin *));
                    edges[i_edge].input_pins[0] =
                            input_pb_graph_node_pin_ptrs[i_inset][i_inpin];
                    edges[i_edge].num_output_pins = 1;
                    edges[i_edge].output_pins = (t_pb_graph_pin **) my_malloc(
                            sizeof(t_pb_graph_pin *));
                    edges[i_edge].output_pins[0] =
                            output_pb_graph_node_pin_ptrs[i_outset][i_outpin];

                    edges[i_edge].interconnect = interconnect;
                    edges[i_edge].driver_set = i_inset;
                    edges[i_edge].driver_pin = i_inpin;

                    i_edge++;
                }
            }
        }
    }
    assert(i_edge == in_count * out_count);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void alloc_and_load_direct_interc_edges ( INP t_interconnect *  interconnect, INOUTP t_pb_graph_pin ***  input_pb_graph_node_pin_ptrs, INP int  num_input_sets, INP int *  num_input_ptrs, INOUTP t_pb_graph_pin ***  output_pb_graph_node_pin_ptrs, INP int  num_output_sets, INP int *  num_output_ptrs  )

static

Definition at line 935 of file pb_type_graph.c.

                                                           {

    int i;
    t_pb_graph_edge *edges;
    struct s_linked_vptr *cur;

    /* Allocate memory for edges */
    if (!(num_input_sets == 1 && num_output_sets == 1)) {
        vpr_printf(TIO_MESSAGE_ERROR,
                "[LINE %d] Direct interconnect allows connections from one set of pins to one other set\n",
                interconnect->line_num);
        exit(1);
    }
    if (!(num_input_ptrs[0] == num_output_ptrs[0])) {
        vpr_printf(TIO_MESSAGE_ERROR,
                "[LINE %d] Direct interconnect must use an equal number of pins\n",
                interconnect->line_num);
        exit(1);
    }

    edges = (t_pb_graph_edge*) my_calloc(num_input_ptrs[0],
            sizeof(t_pb_graph_edge));
    cur = (struct s_linked_vptr*) my_malloc(sizeof(struct s_linked_vptr));
    cur->next = edges_head;
    edges_head = cur;
    cur->data_vptr = (void *) edges;
    cur = (struct s_linked_vptr*) my_malloc(sizeof(struct s_linked_vptr));
    cur->next = num_edges_head;
    num_edges_head = cur;
    cur->data_vptr = (void *) ((long) num_input_ptrs[0]);

    /* Reallocate memory for pins and load connections between pins and record these updates in the edges */
    for (i = 0; i < num_input_ptrs[0]; i++) {
        input_pb_graph_node_pin_ptrs[0][i]->output_edges =
                (t_pb_graph_edge **) my_realloc(
                        input_pb_graph_node_pin_ptrs[0][i]->output_edges,
                        (input_pb_graph_node_pin_ptrs[0][i]->num_output_edges
                                + 1) * sizeof(t_pb_graph_edge *));
        input_pb_graph_node_pin_ptrs[0][i]->output_edges[input_pb_graph_node_pin_ptrs[0][i]->num_output_edges] =
                &edges[i];
        input_pb_graph_node_pin_ptrs[0][i]->num_output_edges++;

        output_pb_graph_node_pin_ptrs[0][i]->input_edges =
                (t_pb_graph_edge **) my_realloc(
                        output_pb_graph_node_pin_ptrs[0][i]->input_edges,
                        (output_pb_graph_node_pin_ptrs[0][i]->num_input_edges
                                + 1) * sizeof(t_pb_graph_edge *));
        output_pb_graph_node_pin_ptrs[0][i]->input_edges[output_pb_graph_node_pin_ptrs[0][i]->num_input_edges] =
                &edges[i];
        output_pb_graph_node_pin_ptrs[0][i]->num_input_edges++;

        edges[i].num_input_pins = 1;
        edges[i].input_pins = (t_pb_graph_pin **) my_malloc(
                sizeof(t_pb_graph_pin *));
        edges[i].input_pins[0] = input_pb_graph_node_pin_ptrs[0][i];
        edges[i].num_output_pins = 1;
        edges[i].output_pins = (t_pb_graph_pin **) my_malloc(
                sizeof(t_pb_graph_pin *));
        edges[i].output_pins[0] = output_pb_graph_node_pin_ptrs[0][i];

        edges[i].interconnect = interconnect;
        edges[i].driver_set = 0;
        edges[i].driver_pin = i;
        edges[i].infer_pattern = interconnect->infer_annotations;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void alloc_and_load_interconnect_pins ( t_interconnect_pins *  interc_pins, t_interconnect *  interconnect, t_pb_graph_pin ***  input_pins, int  num_input_sets, int *  num_input_pins, t_pb_graph_pin ***  output_pins, int  num_output_sets, int *  num_output_pins  )

static

Definition at line 486 of file pb_type_graph.c.

                               {
    int set_idx;
    int pin_idx;
    int port_idx;
    int num_ports;

    interc_pins->interconnect = interconnect;

    switch (interconnect->type) {
    case DIRECT_INTERC:
        assert(num_output_sets == 1);
        /* Fall through here */

    case MUX_INTERC:
        if (!interconnect->interconnect_power->port_info_initialized) {
            for (set_idx = 0; set_idx < num_input_sets; set_idx++) {
                assert(num_input_pins[set_idx] == num_output_pins[0]);
            }
            interconnect->interconnect_power->num_pins_per_port =
                    num_input_pins[0];
            interconnect->interconnect_power->num_input_ports = num_input_sets;
            interconnect->interconnect_power->num_output_ports = 1;

            /* No longer used - mux architectures are not configurable, the
             * default is always assumed
             if (interconnect->mux_arch) {
             interconnect->mux_arch->num_inputs =
             interconnect->num_input_ports;

             mux_arch_fix_levels(interconnect->mux_arch);

             interconnect->mux_arch->mux_graph_head =
             alloc_and_load_mux_graph(interconnect->num_input_ports,
             interconnect->mux_arch->levels);
             }
             */

            interconnect->interconnect_power->port_info_initialized = TRUE;
        }

        interc_pins->input_pins = (t_pb_graph_pin***) my_calloc(num_input_sets,
                sizeof(t_pb_graph_pin**));
        for (set_idx = 0; set_idx < num_input_sets; set_idx++) {
            interc_pins->input_pins[set_idx] = (t_pb_graph_pin**) my_calloc(
                    interconnect->interconnect_power->num_pins_per_port,
                    sizeof(t_pb_graph_pin*));
        }

        interc_pins->output_pins = (t_pb_graph_pin***) my_calloc(1,
                sizeof(t_pb_graph_pin**));
        interc_pins->output_pins[0] = (t_pb_graph_pin**) my_calloc(
                interconnect->interconnect_power->num_pins_per_port,
                sizeof(t_pb_graph_pin*));

        for (pin_idx = 0;
                pin_idx < interconnect->interconnect_power->num_pins_per_port;
                pin_idx++) {
            for (set_idx = 0; set_idx < num_input_sets; set_idx++) {
                interc_pins->input_pins[set_idx][pin_idx] =
                        input_pins[set_idx][pin_idx];
            }
            interc_pins->output_pins[0][pin_idx] = output_pins[0][pin_idx];
        }

        break;
    case COMPLETE_INTERC:

        if (!interconnect->interconnect_power->port_info_initialized) {
            /* The code does not support bus-based crossbars, so all pins from all input sets
             * connect to all pins from all output sets */
            interconnect->interconnect_power->num_pins_per_port = 1;

            num_ports = 0;
            for (set_idx = 0; set_idx < num_input_sets; set_idx++) {
                num_ports += num_input_pins[set_idx];
            }
            interconnect->interconnect_power->num_input_ports = num_ports;

            num_ports = 0;
            for (set_idx = 0; set_idx < num_output_sets; set_idx++) {
                num_ports += num_output_pins[set_idx];
            }
            interconnect->interconnect_power->num_output_ports = num_ports;

            /*
             if (interconnect->mux_arch) {
             interconnect->mux_arch->num_inputs =
             interconnect->num_input_ports;

             mux_arch_fix_levels(interconnect->mux_arch);

             interconnect->mux_arch->mux_graph_head =
             alloc_and_load_mux_graph(interconnect->num_input_ports,
             interconnect->mux_arch->levels);
             }*/

            interconnect->interconnect_power->port_info_initialized = TRUE;
        }

        /* Input Pins */
        interc_pins->input_pins = (t_pb_graph_pin ***) my_calloc(
                interconnect->interconnect_power->num_input_ports,
                sizeof(t_pb_graph_pin**));
        for (port_idx = 0;
                port_idx < interconnect->interconnect_power->num_input_ports;
                port_idx++) {
            interc_pins->input_pins[port_idx] = (t_pb_graph_pin**) my_calloc(
                    interconnect->interconnect_power->num_pins_per_port,
                    sizeof(t_pb_graph_pin*));
        }
        num_ports = 0;
        for (set_idx = 0; set_idx < num_input_sets; set_idx++) {
            for (pin_idx = 0; pin_idx < num_input_pins[set_idx]; pin_idx++) {
                interc_pins->input_pins[num_ports++][0] =
                        input_pins[set_idx][pin_idx];
            }
        }

        /* Output Pins */
        interc_pins->output_pins = (t_pb_graph_pin ***) my_calloc(
                interconnect->interconnect_power->num_output_ports,
                sizeof(t_pb_graph_pin**));
        for (port_idx = 0;
                port_idx < interconnect->interconnect_power->num_output_ports;
                port_idx++) {
            interc_pins->output_pins[port_idx] = (t_pb_graph_pin **) my_calloc(
                    interconnect->interconnect_power->num_pins_per_port,
                    sizeof(t_pb_graph_pin*));
        }
        num_ports = 0;
        for (set_idx = 0; set_idx < num_output_sets; set_idx++) {
            for (pin_idx = 0; pin_idx < num_output_pins[set_idx]; pin_idx++) {
                interc_pins->output_pins[num_ports++][0] =
                        output_pins[set_idx][pin_idx];
            }
        }

        break;
    }

}

Here is the call graph for this function:

Here is the caller graph for this function:

static void alloc_and_load_mode_interconnect ( INOUTP t_pb_graph_node *  pb_graph_parent_node, INOUTP t_pb_graph_node **  pb_graph_children_nodes, INP const t_mode *  mode, boolean  load_power_structures  )

static

Generate interconnect associated with a mode of operation pb_graph_parent_node: parent node of pb in mode pb_graph_children_nodes: [0..num_pb_type_in_mode-1][0..num_pb] mode: mode of operation

Definition at line 638 of file pb_type_graph.c.

                                                                {
    int i, j;
    int *num_input_pb_graph_node_pins, *num_output_pb_graph_node_pins; /* number of pins in a set [0..num_sets-1] */
    int num_input_pb_graph_node_sets, num_output_pb_graph_node_sets;
    t_pb_graph_pin *** input_pb_graph_node_pins, ***output_pb_graph_node_pins;

    if (load_power_structures) {
        assert(pb_graph_parent_node->interconnect_pins[mode->index] == NULL);
        pb_graph_parent_node->interconnect_pins[mode->index] =
                (t_interconnect_pins*) my_calloc(mode->num_interconnect,
                        sizeof(t_interconnect_pins));
    }

    for (i = 0; i < mode->num_interconnect; i++) {
        /* determine the interconnect input and output pins */
        input_pb_graph_node_pins = alloc_and_load_port_pin_ptrs_from_string(
                mode->interconnect[i].line_num, pb_graph_parent_node,
                pb_graph_children_nodes, mode->interconnect[i].input_string,
                &num_input_pb_graph_node_pins, &num_input_pb_graph_node_sets,
                TRUE, TRUE);

        output_pb_graph_node_pins = alloc_and_load_port_pin_ptrs_from_string(
                mode->interconnect[i].line_num, pb_graph_parent_node,
                pb_graph_children_nodes, mode->interconnect[i].output_string,
                &num_output_pb_graph_node_pins, &num_output_pb_graph_node_sets,
                FALSE, TRUE);

        if (load_power_structures) {
            alloc_and_load_interconnect_pins(
                    &pb_graph_parent_node->interconnect_pins[mode->index][i],
                    &mode->interconnect[i], input_pb_graph_node_pins,
                    num_input_pb_graph_node_sets, num_input_pb_graph_node_pins,
                    output_pb_graph_node_pins, num_output_pb_graph_node_sets,
                    num_output_pb_graph_node_pins);
        }

        /* process the interconnect based on its type */
        switch (mode->interconnect[i].type) {

        case COMPLETE_INTERC:
            alloc_and_load_complete_interc_edges(&mode->interconnect[i],
                    input_pb_graph_node_pins, num_input_pb_graph_node_sets,
                    num_input_pb_graph_node_pins, output_pb_graph_node_pins,
                    num_output_pb_graph_node_sets,
                    num_output_pb_graph_node_pins);

            break;

        case DIRECT_INTERC:
            alloc_and_load_direct_interc_edges(&mode->interconnect[i],
                    input_pb_graph_node_pins, num_input_pb_graph_node_sets,
                    num_input_pb_graph_node_pins, output_pb_graph_node_pins,
                    num_output_pb_graph_node_sets,
                    num_output_pb_graph_node_pins);
            break;

        case MUX_INTERC:
            alloc_and_load_mux_interc_edges(&mode->interconnect[i],
                    input_pb_graph_node_pins, num_input_pb_graph_node_sets,
                    num_input_pb_graph_node_pins, output_pb_graph_node_pins,
                    num_output_pb_graph_node_sets,
                    num_output_pb_graph_node_pins);

            break;

        default:
            vpr_printf(TIO_MESSAGE_ERROR,
                    "[LINE %d] Unknown interconnect %d for mode %s in pb_type %s, input %s, output %s\n",
                    mode->interconnect[i].line_num, mode->interconnect[i].type,
                    mode->name, pb_graph_parent_node->pb_type->name,
                    mode->interconnect[i].input_string,
                    mode->interconnect[i].output_string);
            exit(1);
        }
        for (j = 0; j < num_input_pb_graph_node_sets; j++) {
            free(input_pb_graph_node_pins[j]);
        }
        free(input_pb_graph_node_pins);
        for (j = 0; j < num_output_pb_graph_node_sets; j++) {
            free(output_pb_graph_node_pins[j]);
        }
        free(output_pb_graph_node_pins);
        free(num_input_pb_graph_node_pins);
        free(num_output_pb_graph_node_pins);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void alloc_and_load_mux_interc_edges ( INP t_interconnect *  interconnect, INOUTP t_pb_graph_pin ***  input_pb_graph_node_pin_ptrs, INP int  num_input_sets, INP int *  num_input_ptrs, INOUTP t_pb_graph_pin ***  output_pb_graph_node_pin_ptrs, INP int  num_output_sets, INP int *  num_output_ptrs  )

static

Definition at line 1007 of file pb_type_graph.c.

                                                           {
    int i_inset, i_inpin, i_outpin;
    t_pb_graph_edge *edges;
    struct s_linked_vptr *cur;

    assert(interconnect->infer_annotations == FALSE);

    /* Allocate memory for edges, and reallocate more memory for pins connecting to those edges */
    if (num_output_sets != 1) {
        vpr_printf(TIO_MESSAGE_ERROR, "[LINE %d] Mux must have one output\n",
                interconnect->line_num);
        exit(1);
    }

    edges = (t_pb_graph_edge*) my_calloc(num_input_sets,
            sizeof(t_pb_graph_edge));
    cur = (struct s_linked_vptr*) my_malloc(sizeof(struct s_linked_vptr));
    cur->next = edges_head;
    edges_head = cur;
    cur->data_vptr = (void *) edges;
    cur = (struct s_linked_vptr*) my_malloc(sizeof(struct s_linked_vptr));
    cur->next = num_edges_head;
    num_edges_head = cur;
    cur->data_vptr = (void *) ((long) num_input_sets);

    for (i_inset = 0; i_inset < num_input_sets; i_inset++) {
        for (i_inpin = 0; i_inpin < num_input_ptrs[i_inset]; i_inpin++) {
            input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->output_edges =
                    (t_pb_graph_edge**) my_realloc(
                            input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->output_edges,
                            (input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->num_output_edges
                                    + 1) * sizeof(t_pb_graph_edge *));
        }
    }

    for (i_outpin = 0; i_outpin < num_output_ptrs[0]; i_outpin++) {
        output_pb_graph_node_pin_ptrs[0][i_outpin]->input_edges =
                (t_pb_graph_edge**) my_realloc(
                        output_pb_graph_node_pin_ptrs[0][i_outpin]->input_edges,
                        (output_pb_graph_node_pin_ptrs[0][i_outpin]->num_input_edges
                                + num_input_sets) * sizeof(t_pb_graph_edge *));
    }

    /* Load connections between pins and record these updates in the edges */
    for (i_inset = 0; i_inset < num_input_sets; i_inset++) {
        if (num_output_ptrs[0] != num_input_ptrs[i_inset]) {
            vpr_printf(TIO_MESSAGE_ERROR,
                    "[LINE %d] # of pins for a particular data line of a mux must equal number of pins at output of mux\n",
                    interconnect->line_num);
            exit(1);
        }
        edges[i_inset].input_pins = (t_pb_graph_pin**) my_calloc(
                num_output_ptrs[0], sizeof(t_pb_graph_pin *));
        edges[i_inset].output_pins = (t_pb_graph_pin**) my_calloc(
                num_output_ptrs[0], sizeof(t_pb_graph_pin *));
        edges[i_inset].num_input_pins = num_output_ptrs[0];
        edges[i_inset].num_output_pins = num_output_ptrs[0];
        for (i_inpin = 0; i_inpin < num_input_ptrs[i_inset]; i_inpin++) {
            input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->output_edges[input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->num_output_edges] =
                    &edges[i_inset];
            input_pb_graph_node_pin_ptrs[i_inset][i_inpin]->num_output_edges++;
            output_pb_graph_node_pin_ptrs[0][i_inpin]->input_edges[output_pb_graph_node_pin_ptrs[0][i_inpin]->num_input_edges] =
                    &edges[i_inset];
            output_pb_graph_node_pin_ptrs[0][i_inpin]->num_input_edges++;

            edges[i_inset].input_pins[i_inpin] =
                    input_pb_graph_node_pin_ptrs[i_inset][i_inpin];
            edges[i_inset].output_pins[i_inpin] =
                    output_pb_graph_node_pin_ptrs[0][i_inpin];

            if (i_inpin != 0) {
                vpr_printf(TIO_MESSAGE_ERROR,
                        "[LINE %d] Bus-based mux not yet supported, will consider for future work\n",
                        interconnect->line_num);
                exit(1);
            }
            edges[i_inset].interconnect = interconnect;
            edges[i_inset].driver_set = i_inset;
            edges[i_inset].driver_pin = i_inpin;
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void alloc_and_load_pb_graph ( INOUTP t_pb_graph_node *  pb_graph_node, INP t_pb_graph_node *  parent_pb_graph_node, INP t_pb_type *  pb_type, INP int  index, boolean  load_power_structures  )

static

Definition at line 178 of file pb_type_graph.c.

                                                      {
    int i, j, k, i_input, i_output, i_clockport;

    pb_graph_node->placement_index = index;
    pb_graph_node->pb_type = pb_type;
    pb_graph_node->parent_pb_graph_node = parent_pb_graph_node;

    pb_graph_node->num_input_ports = 0;
    pb_graph_node->num_output_ports = 0;
    pb_graph_node->num_clock_ports = 0;

    /* Generate ports for pb graph node */
    for (i = 0; i < pb_type->num_ports; i++) {
        if (pb_type->ports[i].type == IN_PORT && !pb_type->ports[i].is_clock) {
            pb_graph_node->num_input_ports++;
        } else if (pb_type->ports[i].type == OUT_PORT) {
            assert(!pb_type->ports[i].is_clock);
            pb_graph_node->num_output_ports++;
        } else {
            assert(
                    pb_type->ports[i].is_clock && pb_type->ports[i].type == IN_PORT);
            pb_graph_node->num_clock_ports++;
        }
    }

    pb_graph_node->num_input_pins = (int*) my_calloc(
            pb_graph_node->num_input_ports, sizeof(int));
    pb_graph_node->num_output_pins = (int*) my_calloc(
            pb_graph_node->num_output_ports, sizeof(int));
    pb_graph_node->num_clock_pins = (int*) my_calloc(
            pb_graph_node->num_clock_ports, sizeof(int));

    pb_graph_node->input_pins = (t_pb_graph_pin**) my_calloc(
            pb_graph_node->num_input_ports, sizeof(t_pb_graph_pin*));
    pb_graph_node->output_pins = (t_pb_graph_pin**) my_calloc(
            pb_graph_node->num_output_ports, sizeof(t_pb_graph_pin*));
    pb_graph_node->clock_pins = (t_pb_graph_pin**) my_calloc(
            pb_graph_node->num_clock_ports, sizeof(t_pb_graph_pin*));

    i_input = i_output = i_clockport = 0;
    for (i = 0; i < pb_type->num_ports; i++) {
        if (pb_type->ports[i].model_port) {
            assert(pb_type->num_modes == 0);
        } else {
            assert(pb_type->num_modes != 0 || pb_type->ports[i].is_clock);
        }
        if (pb_type->ports[i].type == IN_PORT && !pb_type->ports[i].is_clock) {
            pb_graph_node->input_pins[i_input] = (t_pb_graph_pin*) my_calloc(
                    pb_type->ports[i].num_pins, sizeof(t_pb_graph_pin));
            pb_graph_node->num_input_pins[i_input] = pb_type->ports[i].num_pins;
            for (j = 0; j < pb_type->ports[i].num_pins; j++) {
                pb_graph_node->input_pins[i_input][j].input_edges = NULL;
                pb_graph_node->input_pins[i_input][j].num_input_edges = 0;
                pb_graph_node->input_pins[i_input][j].output_edges = NULL;
                pb_graph_node->input_pins[i_input][j].num_output_edges = 0;
                pb_graph_node->input_pins[i_input][j].pin_number = j;
                pb_graph_node->input_pins[i_input][j].port = &pb_type->ports[i];
                pb_graph_node->input_pins[i_input][j].parent_node =
                        pb_graph_node;
                pb_graph_node->input_pins[i_input][j].pin_count_in_cluster =
                        pin_count_in_cluster;
                pb_graph_node->input_pins[i_input][j].type = PB_PIN_NORMAL;
                if (pb_graph_node->pb_type->blif_model != NULL ) {
                    if (strcmp(pb_graph_node->pb_type->blif_model, ".output")
                            == 0) {
                        pb_graph_node->input_pins[i_input][j].type =
                                PB_PIN_OUTPAD;
                    } else if (pb_graph_node->num_clock_ports != 0) {
                        pb_graph_node->input_pins[i_input][j].type =
                                PB_PIN_SEQUENTIAL;
                    } else {
                        pb_graph_node->input_pins[i_input][j].type =
                                PB_PIN_TERMINAL;
                    }
                }
                pin_count_in_cluster++;
            }
            i_input++;
        } else if (pb_type->ports[i].type == OUT_PORT) {
            pb_graph_node->output_pins[i_output] = (t_pb_graph_pin*) my_calloc(
                    pb_type->ports[i].num_pins, sizeof(t_pb_graph_pin));
            pb_graph_node->num_output_pins[i_output] =
                    pb_type->ports[i].num_pins;
            for (j = 0; j < pb_type->ports[i].num_pins; j++) {
                pb_graph_node->output_pins[i_output][j].input_edges = NULL;
                pb_graph_node->output_pins[i_output][j].num_input_edges = 0;
                pb_graph_node->output_pins[i_output][j].output_edges = NULL;
                pb_graph_node->output_pins[i_output][j].num_output_edges = 0;
                pb_graph_node->output_pins[i_output][j].pin_number = j;
                pb_graph_node->output_pins[i_output][j].port =
                        &pb_type->ports[i];
                pb_graph_node->output_pins[i_output][j].parent_node =
                        pb_graph_node;
                pb_graph_node->output_pins[i_output][j].pin_count_in_cluster =
                        pin_count_in_cluster;
                pb_graph_node->output_pins[i_output][j].type = PB_PIN_NORMAL;
                if (pb_graph_node->pb_type->blif_model != NULL ) {
                    if (strcmp(pb_graph_node->pb_type->blif_model, ".input")
                            == 0) {
                        pb_graph_node->output_pins[i_output][j].type =
                                PB_PIN_INPAD;
                    } else if (pb_graph_node->num_clock_ports != 0) {
                        pb_graph_node->output_pins[i_output][j].type =
                                PB_PIN_SEQUENTIAL;
                    } else {
                        pb_graph_node->output_pins[i_output][j].type =
                                PB_PIN_TERMINAL;
                    }
                }
                pin_count_in_cluster++;
            }
            i_output++;
        } else {
            assert(
                    pb_type->ports[i].is_clock && pb_type->ports[i].type == IN_PORT);
            pb_graph_node->clock_pins[i_clockport] =
                    (t_pb_graph_pin*) my_calloc(pb_type->ports[i].num_pins,
                            sizeof(t_pb_graph_pin));
            pb_graph_node->num_clock_pins[i_clockport] =
                    pb_type->ports[i].num_pins;
            for (j = 0; j < pb_type->ports[i].num_pins; j++) {
                pb_graph_node->clock_pins[i_clockport][j].input_edges = NULL;
                pb_graph_node->clock_pins[i_clockport][j].num_input_edges = 0;
                pb_graph_node->clock_pins[i_clockport][j].output_edges = NULL;
                pb_graph_node->clock_pins[i_clockport][j].num_output_edges = 0;
                pb_graph_node->clock_pins[i_clockport][j].pin_number = j;
                pb_graph_node->clock_pins[i_clockport][j].port =
                        &pb_type->ports[i];
                pb_graph_node->clock_pins[i_clockport][j].parent_node =
                        pb_graph_node;
                pb_graph_node->clock_pins[i_clockport][j].pin_count_in_cluster =
                        pin_count_in_cluster;
                pb_graph_node->clock_pins[i_clockport][j].type = PB_PIN_NORMAL;
                if (pb_graph_node->pb_type->blif_model != NULL ) {
                    pb_graph_node->clock_pins[i_clockport][j].type =
                            PB_PIN_CLOCK;
                }
                pin_count_in_cluster++;
            }
            i_clockport++;
        }
    }

    /* Power */
    if (load_power_structures) {
        pb_graph_node->pb_node_power = (t_pb_graph_node_power*) my_calloc(1,
                sizeof(t_pb_graph_node_power));
        pb_graph_node->pb_node_power->transistor_cnt_buffers = 0.;
        pb_graph_node->pb_node_power->transistor_cnt_interc = 0.;
        pb_graph_node->pb_node_power->transistor_cnt_pb_children = 0.;
    }

    /* Allocate and load child nodes for each mode and create interconnect in each mode */
    pb_graph_node->child_pb_graph_nodes = (t_pb_graph_node***) my_calloc(
            pb_type->num_modes, sizeof(t_pb_graph_node **));
    for (i = 0; i < pb_type->num_modes; i++) {
        pb_graph_node->child_pb_graph_nodes[i] = (t_pb_graph_node**) my_calloc(
                pb_type->modes[i].num_pb_type_children,
                sizeof(t_pb_graph_node *));
        for (j = 0; j < pb_type->modes[i].num_pb_type_children; j++) {
            pb_graph_node->child_pb_graph_nodes[i][j] =
                    (t_pb_graph_node*) my_calloc(
                            pb_type->modes[i].pb_type_children[j].num_pb,
                            sizeof(t_pb_graph_node));
            for (k = 0; k < pb_type->modes[i].pb_type_children[j].num_pb; k++) {
                alloc_and_load_pb_graph(
                        &pb_graph_node->child_pb_graph_nodes[i][j][k],
                        pb_graph_node, &pb_type->modes[i].pb_type_children[j],
                        k, load_power_structures);
            }
        }
    }

    pb_graph_node->interconnect_pins = (t_interconnect_pins**) my_calloc(
            pb_type->num_modes, sizeof(t_interconnect_pins *));
    for (i = 0; i < pb_type->num_modes; i++) {
        /* Create interconnect for mode */
        alloc_and_load_mode_interconnect(pb_graph_node,
                pb_graph_node->child_pb_graph_nodes[i], &pb_type->modes[i],
                load_power_structures);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void alloc_and_load_pin_locations_from_pb_graph ( t_type_descriptor *  type )

static

Definition at line 1427 of file pb_type_graph.c.

                                                                                {
    int i, j, k, m, icapacity;
    int num_sides;
    int side_index;
    int pin_num;
    int count;

    int *num_pb_graph_node_pins; /* number of pins in a set [0..num_sets-1] */
    int num_pb_graph_node_sets;
    t_pb_graph_pin*** pb_graph_node_pins;

    num_sides = 2 * (type->height + 1);
    side_index = 0;
    count = 0;

    if (type->pin_location_distribution == E_SPREAD_PIN_DISTR) {
        pin_num = 0;
        /* evenly distribute pins starting at bottom left corner */
        for (j = 0; j < 4; j++) {
            for (i = 0; i < type->height; i++) {
                if (j == TOP && i != type->height - 1) {
                    continue;
                }
                if (j == BOTTOM && i != 0) {
                    continue;
                }
                for (k = 0; k < (type->num_pins / num_sides) + 1; k++) {
                    pin_num = side_index + k * num_sides;
                    if (pin_num < type->num_pins) {
                        type->pinloc[i][j][pin_num] = 1;
                        type->pin_height[pin_num] = i;
                        count++;
                    }
                }
                side_index++;
            }
        }
        assert(side_index == num_sides);
        assert(count == type->num_pins);
    } else {
        assert(type->pin_location_distribution == E_CUSTOM_PIN_DISTR);
        for (i = 0; i < type->height; i++) {
            for (j = 0; j < 4; j++) {
                if (j == TOP && i != type->height - 1) {
                    continue;
                }
                if (j == BOTTOM && i != 0) {
                    continue;
                }
                for (k = 0; k < type->num_pin_loc_assignments[i][j]; k++) {
                    pb_graph_node_pins =
                            alloc_and_load_port_pin_ptrs_from_string(
                                    type->pb_type->modes[0].interconnect[0].line_num,
                                    type->pb_graph_head,
                                    type->pb_graph_head->child_pb_graph_nodes[0],
                                    type->pin_loc_assignments[i][j][k],
                                    &num_pb_graph_node_pins,
                                    &num_pb_graph_node_sets, FALSE, FALSE);
                    assert(num_pb_graph_node_sets == 1);

                    for (m = 0; m < num_pb_graph_node_pins[0]; m++) {
                        pin_num =
                                pb_graph_node_pins[0][m]->pin_count_in_cluster;
                        assert(pin_num < type->num_pins / type->capacity);
                        for (icapacity = 0; icapacity < type->capacity;
                                icapacity++) {
                            type->pinloc[i][j][pin_num
                                    + icapacity * type->num_pins
                                            / type->capacity] = 1;
                            type->pin_height[pin_num] = i;
                            assert(count < type->num_pins);
                        }
                    }
                    free(pb_graph_node_pins[0]);
                    free(pb_graph_node_pins);
                    free(num_pb_graph_node_pins);
                }
            }
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

t_pb_graph_pin*** alloc_and_load_port_pin_ptrs_from_string	(	INP int	line_num,
		INP const t_pb_graph_node *	pb_graph_parent_node,
		INP t_pb_graph_node **	pb_graph_children_nodes,
		INP const char *	port_string,
		OUTP int **	num_ptrs,
		OUTP int *	num_sets,
		INP boolean	is_input_to_interc,
		INP boolean	interconnect_error_check
	)

creates an array of pointers to the pb graph node pins in order from the port string returns t_pb_graph_pin ptr indexed by [0..num_sets_in_port - 1][0..num_ptrs - 1]

Definition at line 732 of file pb_type_graph.c.

                                                                              {
    t_token * tokens;
    int num_tokens, curr_set;
    int i;
    boolean in_squig_bracket, success;

    t_pb_graph_pin ***pb_graph_pins;

    num_tokens = 0;
    tokens = GetTokensFromString(port_string, &num_tokens);
    *num_sets = 0;
    in_squig_bracket = FALSE;

    /* count the number of sets available */
    for (i = 0; i < num_tokens; i++) {
        assert(tokens[i].type != TOKEN_NULL);
        if (tokens[i].type == TOKEN_OPEN_SQUIG_BRACKET) {
            if (in_squig_bracket) {
                vpr_printf(TIO_MESSAGE_ERROR,
                        "[LINE %d] { inside { in port %s\n", line_num,
                        port_string);
                exit(1);
            }
            in_squig_bracket = TRUE;
        } else if (tokens[i].type == TOKEN_CLOSE_SQUIG_BRACKET) {
            if (!in_squig_bracket) {
                (*num_sets)++;
                vpr_printf(TIO_MESSAGE_ERROR,
                        "[LINE %d] No matching '{' for '}' in port %s\n",
                        line_num, port_string);
                exit(1);
            }
            in_squig_bracket = FALSE;
        } else if (tokens[i].type == TOKEN_DOT) {
            if (!in_squig_bracket) {
                (*num_sets)++;
            }
        }
    }

    if (in_squig_bracket) {
        (*num_sets)++;
        vpr_printf(TIO_MESSAGE_ERROR,
                "[LINE %d] No matching '{' for '}' in port %s\n", line_num,
                port_string);
        exit(1);
    }

    pb_graph_pins = (t_pb_graph_pin***) my_calloc(*num_sets,
            sizeof(t_pb_graph_pin**));
    *num_ptrs = (int*) my_calloc(*num_sets, sizeof(int));

    curr_set = 0;
    for (i = 0; i < num_tokens; i++) {
        assert(tokens[i].type != TOKEN_NULL);
        if (tokens[i].type == TOKEN_OPEN_SQUIG_BRACKET) {
            if (in_squig_bracket) {
                vpr_printf(TIO_MESSAGE_ERROR,
                        "[LINE %d] { inside { in port %s\n", line_num,
                        port_string);
                exit(1);
            }
            in_squig_bracket = TRUE;
        } else if (tokens[i].type == TOKEN_CLOSE_SQUIG_BRACKET) {
            if ((*num_ptrs)[curr_set] == 0) {
                vpr_printf(TIO_MESSAGE_ERROR,
                        "[LINE %d] No data contained in {} in port %s\n",
                        line_num, port_string);
                exit(1);
            }
            if (!in_squig_bracket) {
                curr_set++;
                vpr_printf(TIO_MESSAGE_ERROR,
                        "[LINE %d] No matching '{' for '}' in port %s\n",
                        line_num, port_string);
                exit(1);
            }
            in_squig_bracket = FALSE;
        } else if (tokens[i].type == TOKEN_STRING) {

            success = realloc_and_load_pb_graph_pin_ptrs_at_var(line_num,
                    pb_graph_parent_node, pb_graph_children_nodes,
                    interconnect_error_check, is_input_to_interc, tokens, &i,
                    &((*num_ptrs)[curr_set]), &pb_graph_pins[curr_set]);

            if (!success) {
                vpr_printf(TIO_MESSAGE_ERROR,
                        "[LINE %d] syntax error processing port string %s\n",
                        line_num, port_string);
                exit(1);
            }

            if (!in_squig_bracket) {
                curr_set++;
            }
        }
    }
    assert(curr_set == *num_sets);
    freeTokens(tokens, num_tokens);
    return pb_graph_pins;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int check_pb_graph ( void  )

static

check pb_type graph and return the number of errors

Definition at line 164 of file pb_type_graph.c.

                                {
    int num_errors;
    /* TODO: Error checks to do
     1.  All pin and edge connections are bidirectional and match each other
     2.  All pb_type names are unique in a namespace
     3.  All ports are unique in a pb_type
     4.  Number of pb of a pb_type in graph is the same as requested number
     5.  All pins are connected to edges
     */
    num_errors = 0;

    return num_errors;
}

Here is the caller graph for this function:

void echo_pb_graph

(

char *

filename

)

Print out the pb_type graph

Definition at line 143 of file pb_type_graph.c.

                                    {
    FILE *fp;
    int i;

    fp = my_fopen(filename, "w", 0);

    fprintf(fp, "Physical Blocks Graph\n");
    fprintf(fp, "--------------------------------------------\n\n");

    for (i = 0; i < num_types; i++) {
        fprintf(fp, "type %s\n", type_descriptors[i].name);
        if (type_descriptors[i].pb_graph_head)
            echo_pb_rec(type_descriptors[i].pb_graph_head, 1, fp);
    }

    fclose(fp);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void echo_pb_pins ( INP t_pb_graph_pin **  pb_graph_pins, INP int  num_ports, INP int  level, INP FILE *  fp  )

static

Definition at line 1571 of file pb_type_graph.c.

                                      {
    int i, j, k, m;
    t_port *port;

    print_tabs(fp, level);

    for (i = 0; i < num_ports; i++) {
        port = pb_graph_pins[i][0].port;
        print_tabs(fp, level);
        fprintf(fp, "Port \"%s\": num_pins %d type %d parent name \"%s\"\n",
                port->name, port->num_pins, port->type,
                port->parent_pb_type->name);

        for (j = 0; j < port->num_pins; j++) {
            print_tabs(fp, level + 1);
            assert(j == pb_graph_pins[i][j].pin_number);
            assert(pb_graph_pins[i][j].port == port);
            fprintf(fp,
                    "Pin %d port name \"%s\" num input edges %d num output edges %d parent type \"%s\" parent index %d\n",
                    pb_graph_pins[i][j].pin_number,
                    pb_graph_pins[i][j].port->name,
                    pb_graph_pins[i][j].num_input_edges,
                    pb_graph_pins[i][j].num_output_edges,
                    pb_graph_pins[i][j].parent_node->pb_type->name,
                    pb_graph_pins[i][j].parent_node->placement_index);
            print_tabs(fp, level + 2);
            if (pb_graph_pins[i][j].parent_node->pb_type->num_modes == 0) {
                fprintf(fp, "pin class (depth, pin class): ");
                for (k = 0; k < pb_graph_pins[i][j].parent_node->pb_type->depth;
                        k++) {
                    fprintf(fp, "(%d %d), ", k,
                            pb_graph_pins[i][j].parent_pin_class[k]);
                }
                fprintf(fp, "\n");
                if (pb_graph_pins[i][j].port->type == OUT_PORT) {
                    for (k = 0;
                            k < pb_graph_pins[i][j].parent_node->pb_type->depth;
                            k++) {
                        print_tabs(fp, level + 2);
                        fprintf(fp,
                                "connectable input pins within depth %d: %d\n",
                                k,
                                pb_graph_pins[i][j].num_connectable_primtive_input_pins[k]);
                        for (m = 0;
                                m
                                        < pb_graph_pins[i][j].num_connectable_primtive_input_pins[k];
                                m++) {
                            print_tabs(fp, level + 3);
                            fprintf(fp, "pb_graph_node %s[%d].%s[%d] \n",
                                    pb_graph_pins[i][j].list_of_connectable_input_pin_ptrs[k][m]->parent_node->pb_type->name,
                                    pb_graph_pins[i][j].list_of_connectable_input_pin_ptrs[k][m]->parent_node->placement_index,
                                    pb_graph_pins[i][j].list_of_connectable_input_pin_ptrs[k][m]->port->name,
                                    pb_graph_pins[i][j].list_of_connectable_input_pin_ptrs[k][m]->pin_number);
                        }
                    }
                }
            } else {
                fprintf(fp, "pin class %d \n", pb_graph_pins[i][j].pin_class);
            }
            for (k = 0; k < pb_graph_pins[i][j].num_input_edges; k++) {
                print_tabs(fp, level + 2);
                fprintf(fp, "Input edge %d num inputs %d num outputs %d\n", k,
                        pb_graph_pins[i][j].input_edges[k]->num_input_pins,
                        pb_graph_pins[i][j].input_edges[k]->num_output_pins);
                print_tabs(fp, level + 3);
                fprintf(fp, "Input edge inputs\n");
                for (m = 0;
                        m < pb_graph_pins[i][j].input_edges[k]->num_input_pins;
                        m++) {
                    print_tabs(fp, level + 3);
                    fprintf(fp, "pin number %d port_name \"%s\"\n",
                            pb_graph_pins[i][j].input_edges[k]->input_pins[m]->pin_number,
                            pb_graph_pins[i][j].input_edges[k]->input_pins[m]->port->name);
                }
                print_tabs(fp, level + 3);
                fprintf(fp, "Input edge outputs\n");
                for (m = 0;
                        m < pb_graph_pins[i][j].input_edges[k]->num_output_pins;
                        m++) {
                    print_tabs(fp, level + 3);
                    fprintf(fp,
                            "pin number %d port_name \"%s\" parent type \"%s\" parent index %d\n",
                            pb_graph_pins[i][j].input_edges[k]->output_pins[m]->pin_number,
                            pb_graph_pins[i][j].input_edges[k]->output_pins[m]->port->name,
                            pb_graph_pins[i][j].input_edges[k]->output_pins[m]->parent_node->pb_type->name,
                            pb_graph_pins[i][j].input_edges[k]->output_pins[m]->parent_node->placement_index);
                }
            }
            for (k = 0; k < pb_graph_pins[i][j].num_output_edges; k++) {
                print_tabs(fp, level + 2);
                fprintf(fp, "Output edge %d num inputs %d num outputs %d\n", k,
                        pb_graph_pins[i][j].output_edges[k]->num_input_pins,
                        pb_graph_pins[i][j].output_edges[k]->num_output_pins);
                print_tabs(fp, level + 3);
                fprintf(fp, "Output edge inputs\n");
                for (m = 0;
                        m < pb_graph_pins[i][j].output_edges[k]->num_input_pins;
                        m++) {
                    print_tabs(fp, level + 3);
                    fprintf(fp, "pin number %d port_name \"%s\"\n",
                            pb_graph_pins[i][j].output_edges[k]->input_pins[m]->pin_number,
                            pb_graph_pins[i][j].output_edges[k]->input_pins[m]->port->name);
                }
                print_tabs(fp, level + 3);
                fprintf(fp, "Output edge outputs\n");
                for (m = 0;
                        m < pb_graph_pins[i][j].output_edges[k]->num_output_pins;
                        m++) {
                    print_tabs(fp, level + 3);
                    fprintf(fp,
                            "pin number %d port_name \"%s\" parent type \"%s\" parent index %d\n",
                            pb_graph_pins[i][j].output_edges[k]->output_pins[m]->pin_number,
                            pb_graph_pins[i][j].output_edges[k]->output_pins[m]->port->name,
                            pb_graph_pins[i][j].output_edges[k]->output_pins[m]->parent_node->pb_type->name,
                            pb_graph_pins[i][j].output_edges[k]->output_pins[m]->parent_node->placement_index);
                }
            }
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void echo_pb_rec ( INP const t_pb_graph_node *  pb, INP int  level, INP FILE *  fp  )

static

Here is the caller graph for this function:

static void echo_pb_rec ( const INP t_pb_graph_node *  pb_graph_node, INP int  level, INP FILE *  fp  )

static

Definition at line 1509 of file pb_type_graph.c.

                      {
    int i, j, k;

    print_tabs(fp, level);
    fprintf(fp, "Physical Block: type \"%s\"  index %d  num_children %d\n",
            pb_graph_node->pb_type->name, pb_graph_node->placement_index,
            pb_graph_node->pb_type->num_pb);

    if (pb_graph_node->parent_pb_graph_node) {
        print_tabs(fp, level + 1);
        fprintf(fp, "Parent Block: type \"%s\" index %d \n",
                pb_graph_node->parent_pb_graph_node->pb_type->name,
                pb_graph_node->parent_pb_graph_node->placement_index);
    }

    print_tabs(fp, level);
    fprintf(fp, "Input Ports: total ports %d\n",
            pb_graph_node->num_input_ports);
    echo_pb_pins(pb_graph_node->input_pins, pb_graph_node->num_input_ports,
            level, fp);
    print_tabs(fp, level);
    fprintf(fp, "Output Ports: total ports %d\n",
            pb_graph_node->num_output_ports);
    echo_pb_pins(pb_graph_node->output_pins, pb_graph_node->num_output_ports,
            level, fp);
    print_tabs(fp, level);
    fprintf(fp, "Clock Ports: total ports %d\n",
            pb_graph_node->num_clock_ports);
    echo_pb_pins(pb_graph_node->clock_pins, pb_graph_node->num_clock_ports,
            level, fp);
    print_tabs(fp, level);
    for (i = 0; i < pb_graph_node->num_input_pin_class; i++) {
        fprintf(fp, "Input class %d: %d pins, ", i,
                pb_graph_node->input_pin_class_size[i]);
    }
    fprintf(fp, "\n");
    print_tabs(fp, level);
    for (i = 0; i < pb_graph_node->num_output_pin_class; i++) {
        fprintf(fp, "Output class %d: %d pins, ", i,
                pb_graph_node->output_pin_class_size[i]);
    }
    fprintf(fp, "\n");

    if (pb_graph_node->pb_type->num_modes > 0) {
        print_tabs(fp, level);
        fprintf(fp, "Children:\n");
    }
    for (i = 0; i < pb_graph_node->pb_type->num_modes; i++) {
        for (j = 0; j < pb_graph_node->pb_type->modes[i].num_pb_type_children;
                j++) {
            for (k = 0;
                    k
                            < pb_graph_node->pb_type->modes[i].pb_type_children[j].num_pb;
                    k++) {
                echo_pb_rec(&pb_graph_node->child_pb_graph_nodes[i][j][k],
                        level + 1, fp);
            }
        }
    }
}

Here is the call graph for this function:

void free_all_pb_graph_nodes

(

void

)

Free pb graph

Definition at line 127 of file pb_type_graph.c.

                                   {
    int i;
    for (i = 0; i < num_types; i++) {
        if (type_descriptors[i].pb_type) {
            pin_count_in_cluster = 0;
            if (type_descriptors[i].pb_graph_head) {
                free_pb_graph(type_descriptors[i].pb_graph_head);
                free(type_descriptors[i].pb_graph_head);
            }
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void free_pb_graph ( INOUTP t_pb_graph_node *  pb_graph_node )

static

Definition at line 363 of file pb_type_graph.c.

                                                                 {
    int i, j, k;
    const t_pb_type *pb_type;
    struct s_linked_vptr *cur, *cur_num;
    t_pb_graph_edge *edges;

    pb_type = pb_graph_node->pb_type;

    /*free all lists of connectable input pin pointer of pb_graph_node and it's children*/
    /*free_list_of_connectable_input_pin_ptrs (pb_graph_node);*/

    /* Free ports for pb graph node */
    for (i = 0; i < pb_graph_node->num_input_ports; i++) {
        for (j = 0; j < pb_graph_node->num_input_pins[i]; j++) {
            if (pb_graph_node->input_pins[i][j].pin_timing)
                free(pb_graph_node->input_pins[i][j].pin_timing);
            if (pb_graph_node->input_pins[i][j].pin_timing_del_max)
                free(pb_graph_node->input_pins[i][j].pin_timing_del_max);
            if (pb_graph_node->input_pins[i][j].input_edges)
                free(pb_graph_node->input_pins[i][j].input_edges);
            if (pb_graph_node->input_pins[i][j].output_edges)
                free(pb_graph_node->input_pins[i][j].output_edges);
            if (pb_graph_node->input_pins[i][j].parent_pin_class)
                free(pb_graph_node->input_pins[i][j].parent_pin_class);
        }
        free(pb_graph_node->input_pins[i]);
    }
    for (i = 0; i < pb_graph_node->num_output_ports; i++) {
        for (j = 0; j < pb_graph_node->num_output_pins[i]; j++) {
            if (pb_graph_node->output_pins[i][j].pin_timing)
                free(pb_graph_node->output_pins[i][j].pin_timing);
            if (pb_graph_node->output_pins[i][j].pin_timing_del_max)
                free(pb_graph_node->output_pins[i][j].pin_timing_del_max);
            if (pb_graph_node->output_pins[i][j].input_edges)
                free(pb_graph_node->output_pins[i][j].input_edges);
            if (pb_graph_node->output_pins[i][j].output_edges)
                free(pb_graph_node->output_pins[i][j].output_edges);
            if (pb_graph_node->output_pins[i][j].parent_pin_class)
                free(pb_graph_node->output_pins[i][j].parent_pin_class);

            if (pb_graph_node->output_pins[i][j].list_of_connectable_input_pin_ptrs) {
                for (k = 0; k < pb_graph_node->pb_type->depth; k++) {
                    if (pb_graph_node->output_pins[i][j].list_of_connectable_input_pin_ptrs[k]) {
                        free(
                                pb_graph_node->output_pins[i][j].list_of_connectable_input_pin_ptrs[k]);
                    }
                }
                free(
                        pb_graph_node->output_pins[i][j].list_of_connectable_input_pin_ptrs);
            }

            if (pb_graph_node->output_pins[i][j].num_connectable_primtive_input_pins)
                free(
                        pb_graph_node->output_pins[i][j].num_connectable_primtive_input_pins);
        }
        free(pb_graph_node->output_pins[i]);
    }
    for (i = 0; i < pb_graph_node->num_clock_ports; i++) {
        for (j = 0; j < pb_graph_node->num_clock_pins[i]; j++) {
            if (pb_graph_node->clock_pins[i][j].pin_timing)
                free(pb_graph_node->clock_pins[i][j].pin_timing);
            if (pb_graph_node->clock_pins[i][j].pin_timing_del_max)
                free(pb_graph_node->clock_pins[i][j].pin_timing_del_max);
            if (pb_graph_node->clock_pins[i][j].input_edges)
                free(pb_graph_node->clock_pins[i][j].input_edges);
            if (pb_graph_node->clock_pins[i][j].output_edges)
                free(pb_graph_node->clock_pins[i][j].output_edges);
            if (pb_graph_node->clock_pins[i][j].parent_pin_class)
                free(pb_graph_node->clock_pins[i][j].parent_pin_class);
        }
        free(pb_graph_node->clock_pins[i]);
    }


    for(i = 0; i < pb_graph_node->pb_type->num_modes; i++) {
        free(pb_graph_node->interconnect_pins[i]);
    }
    free(pb_graph_node->interconnect_pins);

    free(pb_graph_node->input_pins);
    free(pb_graph_node->output_pins);
    free(pb_graph_node->clock_pins);

    free(pb_graph_node->num_input_pins);
    free(pb_graph_node->num_output_pins);
    free(pb_graph_node->num_clock_pins);

    free(pb_graph_node->input_pin_class_size);
    free(pb_graph_node->output_pin_class_size);

    for (i = 0; i < pb_type->num_modes; i++) {
        for (j = 0; j < pb_type->modes[i].num_pb_type_children; j++) {
            for (k = 0; k < pb_type->modes[i].pb_type_children[j].num_pb; k++) {
                free_pb_graph(&pb_graph_node->child_pb_graph_nodes[i][j][k]);
            }
            free(pb_graph_node->child_pb_graph_nodes[i][j]);
        }
        free(pb_graph_node->child_pb_graph_nodes[i]);
    }
    free(pb_graph_node->child_pb_graph_nodes);

    while (edges_head != NULL ) {
        cur = edges_head;
        cur_num = num_edges_head;
        edges = (t_pb_graph_edge*) cur->data_vptr;
        for (i = 0; i < (long) cur_num->data_vptr; i++) {
            free(edges[i].input_pins);
            free(edges[i].output_pins);
            if (edges[i].pack_pattern_indices) {
                free(edges[i].pack_pattern_indices);
            }
            if (edges[i].pack_pattern_names) {
                free(edges[i].pack_pattern_names);
            }
        }
        edges_head = edges_head->next;
        num_edges_head = num_edges_head->next;
        free(edges);
        free(cur_num);
        free(cur);
    }
}

Here is the caller graph for this function:

static t_pb_graph_pin * get_pb_graph_pin_from_name ( INP const char *  port_name, INP const t_pb_graph_node *  pb, INP int  pin  )

static

Definition at line 1393 of file pb_type_graph.c.

                                                     {
    int i;

    for (i = 0; i < pb->num_input_ports; i++) {
        if (0 == strcmp(port_name, pb->input_pins[i][0].port->name)) {
            if (pin < pb->input_pins[i][0].port->num_pins) {
                return &pb->input_pins[i][pin];
            } else {
                return NULL ;
            }
        }
    }
    for (i = 0; i < pb->num_output_ports; i++) {
        if (0 == strcmp(port_name, pb->output_pins[i][0].port->name)) {
            if (pin < pb->output_pins[i][0].port->num_pins) {
                return &pb->output_pins[i][pin];
            } else {
                return NULL ;
            }
        }
    }
    for (i = 0; i < pb->num_clock_ports; i++) {
        if (0 == strcmp(port_name, pb->clock_pins[i][0].port->name)) {
            if (pin < pb->clock_pins[i][0].port->num_pins) {
                return &pb->clock_pins[i][pin];
            } else {
                return NULL ;
            }
        }
    }
    return NULL ;
}

Here is the caller graph for this function:

static boolean realloc_and_load_pb_graph_pin_ptrs_at_var ( INP int  line_num, INP const t_pb_graph_node *  pb_graph_parent_node, INP t_pb_graph_node **  pb_graph_children_nodes, INP boolean  interconnect_error_check, INP boolean  is_input_to_interc, INP const t_token *  tokens, INOUTP int *  token_index, INOUTP int *  num_pins, OUTP t_pb_graph_pin ***  pb_graph_pins  )

static

populate array of pb graph pins for a single variable of type pb_type[int:int].port[int:int] pb_graph_pins: pointer to array from [0..num_port_pins] of pb_graph_pin pointers tokens: array of tokens to scan num_pins: current number of pins in pb_graph_pin array

Definition at line 1100 of file pb_type_graph.c.

                                                                    {

    int i, j, ipin, ipb;
    int pb_msb, pb_lsb;
    int pin_msb, pin_lsb;
    int max_pb_node_array;
    const t_pb_graph_node *pb_node_array;
    char *port_name;
    t_port *iport;
    int add_or_subtract_pb, add_or_subtract_pin;
    boolean found;
    t_mode *mode = NULL;

    assert(tokens[*token_index].type == TOKEN_STRING);
    pb_node_array = NULL;
    max_pb_node_array = 0;

    if (pb_graph_children_nodes)
        mode = pb_graph_children_nodes[0][0].pb_type->parent_mode;

    pb_msb = pb_lsb = OPEN;
    pin_msb = pin_lsb = OPEN;

    /* parse pb */
    found = FALSE;
    if (0
            == strcmp(pb_graph_parent_node->pb_type->name,
                    tokens[*token_index].data)) {
        pb_node_array = pb_graph_parent_node;
        max_pb_node_array = 1;
        pb_msb = pb_lsb = 0;
        found = TRUE;
        (*token_index)++;
        if (tokens[*token_index].type == TOKEN_OPEN_SQUARE_BRACKET) {
            (*token_index)++;
            if (!checkTokenType(tokens[*token_index], TOKEN_INT)) {
                return FALSE;
            }
            pb_msb = my_atoi(tokens[*token_index].data);
            (*token_index)++;
            if (!checkTokenType(tokens[*token_index], TOKEN_COLON)) {
                if (!checkTokenType(tokens[*token_index],
                        TOKEN_CLOSE_SQUARE_BRACKET)) {
                    return FALSE;
                }
                pb_lsb = pb_msb;
                (*token_index)++;
            } else {
                (*token_index)++;
                if (!checkTokenType(tokens[*token_index], TOKEN_INT)) {
                    return FALSE;
                }
                pb_lsb = my_atoi(tokens[*token_index].data);
                (*token_index)++;
                if (!checkTokenType(tokens[*token_index],
                        TOKEN_CLOSE_SQUARE_BRACKET)) {
                    return FALSE;
                }
                (*token_index)++;
            }
            /* Check to make sure indices from user match internal data structures for the indices of the parent */
            if ((pb_lsb != pb_msb)
                    && (pb_lsb != pb_graph_parent_node->placement_index)) {
                vpr_printf(TIO_MESSAGE_ERROR,
                        "[LINE %d] Incorrect placement index for %s, expected index %d\n",
                        line_num, tokens[0].data,
                        pb_graph_parent_node->placement_index);
                return FALSE;
            }
            pb_lsb = pb_msb = 0; /* Internal representation of parent is always 0 */
        }
    } else {
        if (mode == NULL ) {
            vpr_printf(TIO_MESSAGE_ERROR,
                    "[LINE %d] pb_graph_parent_node %s failed\n", line_num,
                    pb_graph_parent_node->pb_type->name);
            exit(1);
        }
        for (i = 0; i < mode->num_pb_type_children; i++) {
            assert(
                    &mode->pb_type_children[i] == pb_graph_children_nodes[i][0].pb_type);
            if (0
                    == strcmp(mode->pb_type_children[i].name,
                            tokens[*token_index].data)) {
                pb_node_array = pb_graph_children_nodes[i];
                max_pb_node_array = mode->pb_type_children[i].num_pb;
                found = TRUE;
                (*token_index)++;

                if (tokens[*token_index].type == TOKEN_OPEN_SQUARE_BRACKET) {
                    (*token_index)++;
                    if (!checkTokenType(tokens[*token_index], TOKEN_INT)) {
                        return FALSE;
                    }
                    pb_msb = my_atoi(tokens[*token_index].data);
                    (*token_index)++;
                    if (!checkTokenType(tokens[*token_index], TOKEN_COLON)) {
                        if (!checkTokenType(tokens[*token_index],
                                TOKEN_CLOSE_SQUARE_BRACKET)) {
                            return FALSE;
                        }
                        pb_lsb = pb_msb;
                        (*token_index)++;
                    } else {
                        (*token_index)++;
                        if (!checkTokenType(tokens[*token_index], TOKEN_INT)) {
                            return FALSE;
                        }
                        pb_lsb = my_atoi(tokens[*token_index].data);
                        (*token_index)++;
                        if (!checkTokenType(tokens[*token_index],
                                TOKEN_CLOSE_SQUARE_BRACKET)) {
                            return FALSE;
                        }
                        (*token_index)++;
                    }
                } else {
                    pb_msb = pb_node_array[0].pb_type->num_pb - 1;
                    pb_lsb = 0;
                }
                break;
            }
        }
    }

    if (!found) {
        vpr_printf(TIO_MESSAGE_ERROR,
                "[LINE %d] Unknown pb_type name %s, not defined in namespace of mode %s\n",
                line_num, tokens[*token_index].data, mode->name);
        return FALSE;
    }

    found = FALSE;

    if (!checkTokenType(tokens[*token_index], TOKEN_DOT)) {
        return FALSE;
    }
    (*token_index)++;
    if (!checkTokenType(tokens[*token_index], TOKEN_STRING)) {
        return FALSE;
    }

    /* parse ports and port pins of pb */
    port_name = tokens[*token_index].data;

    (*token_index)++;
    if (tokens[*token_index].type == TOKEN_OPEN_SQUARE_BRACKET) {
        (*token_index)++;
        if (!checkTokenType(tokens[*token_index], TOKEN_INT)) {
            return FALSE;
        }
        pin_msb = my_atoi(tokens[*token_index].data);
        (*token_index)++;
        if (!checkTokenType(tokens[*token_index], TOKEN_COLON)) {
            if (!checkTokenType(tokens[*token_index],
                    TOKEN_CLOSE_SQUARE_BRACKET)) {
                return FALSE;
            }
            pin_lsb = pin_msb;
            (*token_index)++;
        } else {
            (*token_index)++;
            if (!checkTokenType(tokens[*token_index], TOKEN_INT)) {
                return FALSE;
            }
            pin_lsb = my_atoi(tokens[*token_index].data);
            (*token_index)++;
            if (!checkTokenType(tokens[*token_index],
                    TOKEN_CLOSE_SQUARE_BRACKET)) {
                return FALSE;
            }
            (*token_index)++;
        }
    } else {
        if (pb_lsb < 0 || pb_lsb >= max_pb_node_array) {
            vpr_printf(TIO_MESSAGE_ERROR,
                    "[LINE %d] pb %d out of range [%d,%d]\n", line_num, pb_lsb,
                    max_pb_node_array - 1, 0);
            exit(1);
        }
        if (get_pb_graph_pin_from_name(port_name, &pb_node_array[pb_lsb],
                0) == NULL) {
            vpr_printf(TIO_MESSAGE_ERROR,
                    "[LINE %d] failed to find port name %s\n", line_num,
                    port_name);
            exit(1);
        }
        iport =
                get_pb_graph_pin_from_name(port_name, &pb_node_array[pb_lsb], 0)->port;
        pin_msb = iport->num_pins - 1;
        pin_lsb = 0;
    }
    (*token_index)--;

    if (pb_msb < pb_lsb) {
        add_or_subtract_pb = -1;
    } else {
        add_or_subtract_pb = 1;
    }

    if (pin_msb < pin_lsb) {
        add_or_subtract_pin = -1;
    } else {
        add_or_subtract_pin = 1;
    }
    *num_pins += (abs(pb_msb - pb_lsb) + 1) * (abs(pin_msb - pin_lsb) + 1);
    *pb_graph_pins = (t_pb_graph_pin**) my_calloc(*num_pins,
            sizeof(t_pb_graph_pin *));
    i = j = 0;

    ipb = pb_lsb;

    while (ipb != pb_msb + add_or_subtract_pin) {
        ipin = pin_lsb;
        j = 0;
        while (ipin != pin_msb + add_or_subtract_pin) {
            if (ipb < 0 || ipb >= max_pb_node_array) {
                vpr_printf(TIO_MESSAGE_ERROR,
                        "[LINE %d] pb %d out of range [%d,%d]\n", line_num, ipb,
                        max_pb_node_array - 1, 0);
                exit(1);
            }
            (*pb_graph_pins)[i * (abs(pin_msb - pin_lsb) + 1) + j] =
                    get_pb_graph_pin_from_name(port_name, &pb_node_array[ipb],
                            ipin);
            if ((*pb_graph_pins)[i * (abs(pin_msb - pin_lsb) + 1) + j] == NULL ) {
                vpr_printf(TIO_MESSAGE_ERROR,
                        "[LINE %d] Pin %s.%s[%d] cannot be found\n", line_num,
                        pb_node_array[ipb].pb_type->name, port_name, ipin);
                exit(1);
            }
            iport =
                    (*pb_graph_pins)[i * (abs(pin_msb - pin_lsb) + 1) + j]->port;
            if (!iport) {
                return FALSE;
            }

            /* Error checking before assignment */
            if (interconnect_error_check) {
                if (pb_node_array == pb_graph_parent_node) {
                    if (is_input_to_interc) {
                        if (iport->type != IN_PORT) {
                            vpr_printf(TIO_MESSAGE_ERROR,
                                    "[LINE %d] input to interconnect from parent is not an input or clock pin\n",
                                    line_num);
                            return FALSE;
                        }
                    } else {
                        if (iport->type != OUT_PORT) {
                            vpr_printf(TIO_MESSAGE_ERROR,
                                    "[LINE %d] output from interconnect from parent is not an input or clock pin\n",
                                    line_num);
                            return FALSE;
                        }
                    }
                } else {
                    if (is_input_to_interc) {
                        if (iport->type != OUT_PORT) {
                            vpr_printf(TIO_MESSAGE_ERROR,
                                    "[LINE %d] output from interconnect from parent is not an input or clock pin\n",
                                    line_num);
                            return FALSE;
                        }
                    } else {
                        if (iport->type != IN_PORT) {
                            vpr_printf(TIO_MESSAGE_ERROR,
                                    "[LINE %d] input to interconnect from parent is not an input or clock pin\n",
                                    line_num);
                            return FALSE;
                        }
                    }
                }
            }

            /* load pb_graph_pin for pin */

            ipin += add_or_subtract_pin;
            j++;
        }
        i++;
        ipb += add_or_subtract_pb;
    }

    assert((abs(pb_msb - pb_lsb) + 1) * (abs(pin_msb - pin_lsb) + 1) == i * j);

    return TRUE;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

struct s_linked_vptr* edges_head

static

Definition at line 25 of file pb_type_graph.c.

struct s_linked_vptr* num_edges_head

static

Definition at line 26 of file pb_type_graph.c.

int pin_count_in_cluster

static

Jason Luu July 17, 2009 pb_graph creates the internal routing edges that join together the different pb_types modes within a pb_type

Definition at line 24 of file pb_type_graph.c.
