#include <stdlib.h>
#include <stdio.h>
#include <assert.h>
#include <string.h>
#include "util.h"
#include "arch_types.h"
#include "vpr_types.h"
#include "globals.h"
#include "vpr_utils.h"
#include "pb_type_graph.h"
#include "token.h"
#include "pb_type_graph_annotations.h"

Include dependency graph for pb_type_graph_annotations.c:

Functions
static void	load_pack_pattern_annotations (INP int line_num, INOUTP t_pb_graph_node pb_graph_node, INP int mode, INP char annot_in_pins, INP char annot_out_pins, INP char value)

static void	load_critical_path_annotations (INP int line_num, INOUTP t_pb_graph_node pb_graph_node, INP int mode, INP enum e_pin_to_pin_annotation_format input_format, INP enum e_pin_to_pin_delay_annotations delay_type, INP char annot_in_pins, INP char annot_out_pins, INP char value)

void	load_pb_graph_pin_to_pin_annotations (INOUTP t_pb_graph_node *pb_graph_node)

Function Documentation

static void load_critical_path_annotations	(	INP int	line_num,
		INOUTP t_pb_graph_node *	pb_graph_node,
		INP int	mode,
		INP enum e_pin_to_pin_annotation_format	input_format,
		INP enum e_pin_to_pin_delay_annotations	delay_type,
		INP char *	annot_in_pins,
		INP char *	annot_out_pins,
		INP char *	value
	)

static

Definition at line 186 of file pb_type_graph_annotations.c.

                                                                             {

     int i, j, k, m, n, p, iedge;
     t_pb_graph_pin ***in_port, ***out_port;
     int *num_in_ptrs, *num_out_ptrs, num_in_sets, num_out_sets;
     float **delay_matrix;
     t_pb_graph_node **children = NULL;

     int count, prior_offset;
     int num_inputs, num_outputs;

     in_port = out_port = NULL;
     num_out_sets = num_in_sets = 0;
     num_out_ptrs = num_in_ptrs = NULL;

     /* Primarily 3 kinds of delays that affect critical path:
      1.  Intrablock interconnect delays
      2.  Combinational primitives (pin-to-pin delays of primitive)
      3.  Sequential primitives (setup and clock-to-q times)

      Note:  Proper I/O modelling requires knowledge of the extra-chip world (eg. the load that pin is driving, drive strength, etc)
      For now, I/O delays are modelled as a constant in the architecture file by setting the pad-I/O block interconnect delay to be a constant I/O delay

      Algorithm: Intrablock and combinational primitive delays apply to edges
      Sequential delays apply to pins
      1.  Determine if delay applies to pin or edge
      2.  Format the delay information
      3.  Load delay information
      */

     /* Determine what pins to read based on delay type */
     num_inputs = num_outputs = 0;
     if (mode == OPEN) {
         children = NULL;
     } else {
         children = pb_graph_node->child_pb_graph_nodes[mode];
     }
     if (delay_type == E_ANNOT_PIN_TO_PIN_DELAY_TSETUP) {
         assert(pb_graph_node->pb_type->blif_model != NULL);
         in_port = alloc_and_load_port_pin_ptrs_from_string(line_num, pb_graph_node,
                 children, annot_in_pins, &num_in_ptrs, &num_in_sets, FALSE,
                 FALSE);
     } else if (delay_type == E_ANNOT_PIN_TO_PIN_DELAY_CLOCK_TO_Q_MAX) {
         assert(pb_graph_node->pb_type->blif_model != NULL);
         in_port = alloc_and_load_port_pin_ptrs_from_string(line_num, pb_graph_node,
                 children, annot_in_pins, &num_in_ptrs, &num_in_sets, FALSE,
                 FALSE);
     } else {
         assert(delay_type == E_ANNOT_PIN_TO_PIN_DELAY_MAX);
         in_port = alloc_and_load_port_pin_ptrs_from_string(line_num, pb_graph_node,
                 children, annot_in_pins, &num_in_ptrs, &num_in_sets, FALSE,
                 FALSE);
         out_port = alloc_and_load_port_pin_ptrs_from_string(line_num, pb_graph_node,
                 children, annot_out_pins, &num_out_ptrs, &num_out_sets, FALSE,
                 FALSE);
     }

     num_inputs = 0;
     for (i = 0; i < num_in_sets; i++) {
         num_inputs += num_in_ptrs[i];
     }

     if (out_port != NULL) {
         num_outputs = 0;
         for (i = 0; i < num_out_sets; i++) {
             num_outputs += num_out_ptrs[i];
         }
     } else {
         num_outputs = 1;
     }

     delay_matrix = (float**)my_malloc(sizeof(float*) * num_inputs);
     for (i = 0; i < num_inputs; i++) {
         delay_matrix[i] = (float*)my_malloc(sizeof(float) * num_outputs);
     }

     if (input_format == E_ANNOT_PIN_TO_PIN_MATRIX) {
         my_atof_2D(delay_matrix, num_inputs, num_outputs, value);
     } else {
         assert(input_format == E_ANNOT_PIN_TO_PIN_CONSTANT);
         for (i = 0; i < num_inputs; i++) {
             for (j = 0; j < num_outputs; j++) {
                 delay_matrix[i][j] = atof(value);
             }
         }
     }

     if (delay_type == E_ANNOT_PIN_TO_PIN_DELAY_TSETUP
             || delay_type == E_ANNOT_PIN_TO_PIN_DELAY_CLOCK_TO_Q_MAX) {
         k = 0;
         for (i = 0; i < num_in_sets; i++) {
             for (j = 0; j < num_in_ptrs[i]; j++) {
                 in_port[i][j]->tsu_tco = delay_matrix[k][0];
                 k++;
             }
         }
     } else {
         if (pb_graph_node->pb_type->num_modes != 0) {
             /* Not a primitive, find pb_graph_edge */
             k = 0;
             for (i = 0; i < num_in_sets; i++) {
                 for (j = 0; j < num_in_ptrs[i]; j++) {
                     p = 0;
                     for (m = 0; m < num_out_sets; m++) {
                         for (n = 0; n < num_out_ptrs[m]; n++) {
                             for (iedge = 0;
                                     iedge < in_port[i][j]->num_output_edges;
                                     iedge++) {
                                 if (in_port[i][j]->output_edges[iedge]->output_pins[0]
                                         == out_port[m][n]) {
                                     assert(
                                             in_port[i][j]->output_edges[iedge]->delay_max == 0);
                                     break;
                                 }
                             }
                             /* jluu Todo: This is inefficient, I know the interconnect so I know what edges exist
                              can use this info to only annotate existing edges */
                             if (iedge != in_port[i][j]->num_output_edges) {
                                 in_port[i][j]->output_edges[iedge]->delay_max =
                                         delay_matrix[k][p];
                             }
                             p++;
                         }
                     }
                     k++;
                 }
             }
         } else {
             /* Primitive, allocate appropriate nodes */
             k = 0;
             for (i = 0; i < num_in_sets; i++) {
                 for (j = 0; j < num_in_ptrs[i]; j++) {
                     count = p = 0;
                     for (m = 0; m < num_out_sets; m++) {
                         for (n = 0; n < num_out_ptrs[m]; n++) {
                             /* OPEN indicates that connection does not exist */
                             if (delay_matrix[k][p] != OPEN) {
                                 count++;
                             }
                             p++;
                         }
                     }
                     prior_offset = in_port[i][j]->num_pin_timing;
                     in_port[i][j]->num_pin_timing = prior_offset + count;
                     in_port[i][j]->pin_timing_del_max = (float*) my_realloc(in_port[i][j]->pin_timing_del_max,
                             sizeof(float) * in_port[i][j]->num_pin_timing);
                     in_port[i][j]->pin_timing = (t_pb_graph_pin**)my_realloc(in_port[i][j]->pin_timing,
                             sizeof(t_pb_graph_pin*) * in_port[i][j]->num_pin_timing);
                     p = 0;
                     count = 0;
                     for (m = 0; m < num_out_sets; m++) {
                         for (n = 0; n < num_out_ptrs[m]; n++) {
                             if (delay_matrix[k][p] != OPEN) {
                                 in_port[i][j]->pin_timing_del_max[prior_offset + count] =
                                         delay_matrix[k][p];
                                 in_port[i][j]->pin_timing[prior_offset + count] =
                                         out_port[m][n];
                                 count++;
                             }
                             p++;
                         }
                     }
                     assert(in_port[i][j]->num_pin_timing == prior_offset + count);
                     k++;
                 }
             }
         }
     }
     if (in_port != NULL) {
         for (i = 0; i < num_in_sets; i++) {
             free(in_port[i]);
         }
         free(in_port);
         free(num_in_ptrs);
     }
     if (out_port != NULL) {
         for (i = 0; i < num_out_sets; i++) {
             free(out_port[i]);
         }
         free(out_port);
         free(num_out_ptrs);
     }
     for (i = 0; i < num_inputs; i++) {
         free(delay_matrix[i]);
     }
     free(delay_matrix);
 }

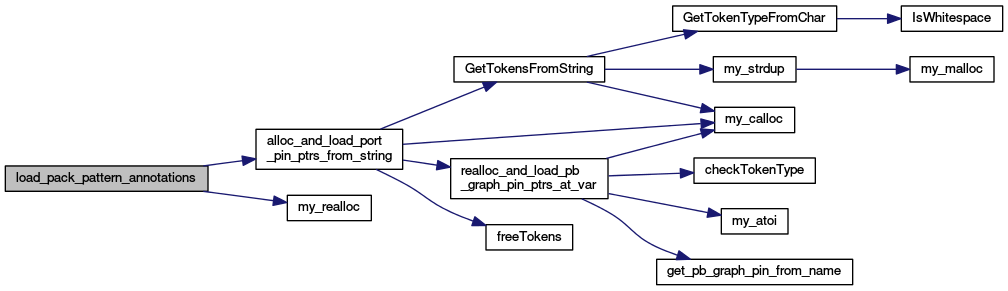

Here is the call graph for this function:

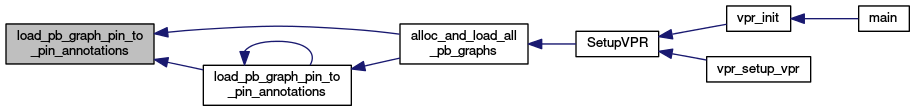

Here is the caller graph for this function:

static void load_pack_pattern_annotations	(	INP int	line_num,
		INOUTP t_pb_graph_node *	pb_graph_node,
		INP int	mode,
		INP char *	annot_in_pins,
		INP char *	annot_out_pins,
		INP char *	value
	)

static

Definition at line 123 of file pb_type_graph_annotations.c.

                          {
     int i, j, k, m, n, p, iedge;
     t_pb_graph_pin ***in_port, ***out_port;
     int *num_in_ptrs, *num_out_ptrs, num_in_sets, num_out_sets;
     t_pb_graph_node **children = NULL;

     children = pb_graph_node->child_pb_graph_nodes[mode];
     in_port = alloc_and_load_port_pin_ptrs_from_string(line_num, pb_graph_node, children,
             annot_in_pins, &num_in_ptrs, &num_in_sets, FALSE, FALSE);
     out_port = alloc_and_load_port_pin_ptrs_from_string(line_num, pb_graph_node, children,
             annot_out_pins, &num_out_ptrs, &num_out_sets, FALSE, FALSE);

     /* Discover edge then annotate edge with name of pack pattern */
     k = 0;
     for (i = 0; i < num_in_sets; i++) {
         for (j = 0; j < num_in_ptrs[i]; j++) {
             p = 0;
             for (m = 0; m < num_out_sets; m++) {
                 for (n = 0; n < num_out_ptrs[m]; n++) {
                     for (iedge = 0; iedge < in_port[i][j]->num_output_edges;
                             iedge++) {
                         if (in_port[i][j]->output_edges[iedge]->output_pins[0]
                                 == out_port[m][n]) {
                             break;
                         }
                     }
                     /* jluu Todo: This is inefficient, I know the interconnect so I know what edges exist
                      can use this info to only annotate existing edges */
                     if (iedge != in_port[i][j]->num_output_edges) {
                         in_port[i][j]->output_edges[iedge]->num_pack_patterns++;
                         in_port[i][j]->output_edges[iedge]->pack_pattern_names = (char**)
                                 my_realloc(
                                         in_port[i][j]->output_edges[iedge]->pack_pattern_names,
                                         sizeof(char*)
                                                 * in_port[i][j]->output_edges[iedge]->num_pack_patterns);
                         in_port[i][j]->output_edges[iedge]->pack_pattern_names[in_port[i][j]->output_edges[iedge]->num_pack_patterns
                                 - 1] = value;
                     }
                     p++;
                 }
             }
             k++;
         }
     }

     if (in_port != NULL) {
         for (i = 0; i < num_in_sets; i++) {
             free(in_port[i]);
         }
         free(in_port);
         free(num_in_ptrs);
     }
     if (out_port != NULL) {
         for (i = 0; i < num_out_sets; i++) {
             free(out_port[i]);
         }
         free(out_port);
         free(num_out_ptrs);
     }
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void load_pb_graph_pin_to_pin_annotations ( INOUTP t_pb_graph_node * pb_graph_node )

Jason Luu April 15, 2011 pb_type_graph_annotations loads statistical information onto the different nodes/edges of a pb_type_graph. These statistical informations include delays, capacitance, etc.

Definition at line 29 of file pb_type_graph_annotations.c.

                                                                                  {
     int i, j, k, m;
     const t_pb_type *pb_type;
     t_pin_to_pin_annotation *annotations;

     pb_type = pb_graph_node->pb_type;

     /* Load primitive critical path delays */
     if (pb_type->num_modes == 0) {
         annotations = pb_type->annotations;
         for (i = 0; i < pb_type->num_annotations; i++) {
             if (annotations[i].type == E_ANNOT_PIN_TO_PIN_DELAY) {
                 for (j = 0; j < annotations[i].num_value_prop_pairs; j++) {
                     if (annotations[i].prop[j] == E_ANNOT_PIN_TO_PIN_DELAY_MAX
                             || annotations[i].prop[j]
                                     == E_ANNOT_PIN_TO_PIN_DELAY_CLOCK_TO_Q_MAX
                             || annotations[i].prop[j]
                                     == E_ANNOT_PIN_TO_PIN_DELAY_TSETUP) {
                                         load_critical_path_annotations(annotations[i].line_num, pb_graph_node, OPEN,
                                 annotations[i].format, (enum e_pin_to_pin_delay_annotations)annotations[i].prop[j],
                                 annotations[i].input_pins,
                                 annotations[i].output_pins,
                                 annotations[i].value[j]);
                     } else {
                         assert(
                                 annotations[i].prop[j] == E_ANNOT_PIN_TO_PIN_DELAY_MIN || annotations[i].prop[j] == E_ANNOT_PIN_TO_PIN_DELAY_CLOCK_TO_Q_MIN || annotations[i].prop[j] == E_ANNOT_PIN_TO_PIN_DELAY_THOLD);
                     }
                 }
             } else {
                 /* Todo:
                  load_hold_time_constraints_annotations(pb_graph_node);
                  load_power_annotations(pb_graph_node);
                  */
             }
         }
     } else {
         /* Load interconnect delays */
         for (i = 0; i < pb_type->num_modes; i++) {
             for (j = 0; j < pb_type->modes[i].num_interconnect; j++) {
                 annotations = pb_type->modes[i].interconnect[j].annotations;
                 for (k = 0;
                         k < pb_type->modes[i].interconnect[j].num_annotations;
                         k++) {
                     if (annotations[k].type == E_ANNOT_PIN_TO_PIN_DELAY) {
                         for (m = 0; m < annotations[k].num_value_prop_pairs;
                                 m++) {
                             if (annotations[k].prop[m]
                                     == E_ANNOT_PIN_TO_PIN_DELAY_MAX
                                     || annotations[k].prop[m]
                                             == E_ANNOT_PIN_TO_PIN_DELAY_CLOCK_TO_Q_MAX
                                     || annotations[k].prop[m]
                                             == E_ANNOT_PIN_TO_PIN_DELAY_TSETUP) {
                                     load_critical_path_annotations(annotations[k].line_num, pb_graph_node, i,
                                         annotations[k].format,
                                         (enum e_pin_to_pin_delay_annotations)annotations[k].prop[m],
                                         annotations[k].input_pins,
                                         annotations[k].output_pins,
                                         annotations[k].value[m]);
                             } else {
                                 assert(
                                         annotations[k].prop[m] == E_ANNOT_PIN_TO_PIN_DELAY_MIN || annotations[k].prop[m] == E_ANNOT_PIN_TO_PIN_DELAY_CLOCK_TO_Q_MIN || annotations[k].prop[m] == E_ANNOT_PIN_TO_PIN_DELAY_THOLD);
                             }
                         }
                     } else if (annotations[k].type
                             == E_ANNOT_PIN_TO_PIN_PACK_PATTERN) {
                         assert(annotations[k].num_value_prop_pairs == 1);
                         load_pack_pattern_annotations(annotations[k].line_num, pb_graph_node, i,
                                 annotations[k].input_pins,
                                 annotations[k].output_pins,
                                 annotations[k].value[0]);
                     } else {
                         /* Todo:
                          load_hold_time_constraints_annotations(pb_graph_node);
                          load_power_annotations(pb_graph_node);
                          */
                     }
                 }
             }
         }
     }

     for (i = 0; i < pb_type->num_modes; i++) {
         for (j = 0; j < pb_type->modes[i].num_pb_type_children; j++) {
             for (k = 0; k < pb_type->modes[i].pb_type_children[j].num_pb; k++) {
                 load_pb_graph_pin_to_pin_annotations(
                         &pb_graph_node->child_pb_graph_nodes[i][j][k]);
             }
         }
     }
 }

Here is the call graph for this function:

Here is the caller graph for this function:
